4 Version Control and Collaboration

openstatsware short course: Good Software Engineering Practice for R Packages

Alessandro Gasparini

August 24, 2025

Disclaimer

Any opinions expressed in this presentation and on the following slides are solely those of the presenter and not necessarily those of their employers.

• Overview, demo, practical
• Can only scratch surface
• More resources on the course website

Trade-offs in code development

Working alone:

• No coordination overhead
• No review
• Lack of diversity
• Can slack on documentation
• Fragile long-term maintenance

Working in a team:

• Coordination overhead
• Mutual review of code
• Different approaches
• Forced to document
• More robust long-term maintenance

Key issue:
Manage complexity over time or between people

• No matter how a group is organised, the work of many contributors often needs to be combined into a single set of shared working documents

• Managing changes/revisions to these documents is called versioning

Version control systems (VCS)

• Manage different versions of a piece of work
• Compare and merge diverged versions effectively¹

flowchart LR
  A[Alessandro v1] --> B[Alessandro v2]
  B --> C[Alessandro v3]
  B --> D[Audrey v1]
  D --> E[Audrey + Alessandro v4]
  C --> E

• Code is complex system \(\leadsto\) ideal application of VCS
• Compounded by multiple people fiddling with it!

1. Merging parallel edits is not simple: try merging multiple copies of the same document, each including feedback from your co-authors, using MS Word…

git basics

Enter git

• Created by Linus Torvalds in 2005, for work on Linux kernel
• Essentially a database with snapshots of a monitored repository (directory)
• Optimized to compute line-based changes
• Integrated in RStudio IDE, Visual Studio Code
• De facto standard, and not just in the R world
• Alternatives: mercurial, SVN, …

Git commands

• git commands are composed of three parts:
  • git verb options
  • git invokes Git
  • verb is a placeholder for the different actions (such as branch or commit, more on that later)
  • options is a placeholder for any option possibly required by a certain verb (not always required)
• Hint: git help is your friend!

Stage and commit

gitGraph
   commit
   commit
   commit
   commit
   commit

1. Stage changes for inspection
   • allows to inspect proposed changes before locking them in
2. Permanently commit changes to git to add them to the project history

\(\leadsto\) Chain of versions with incremental changes

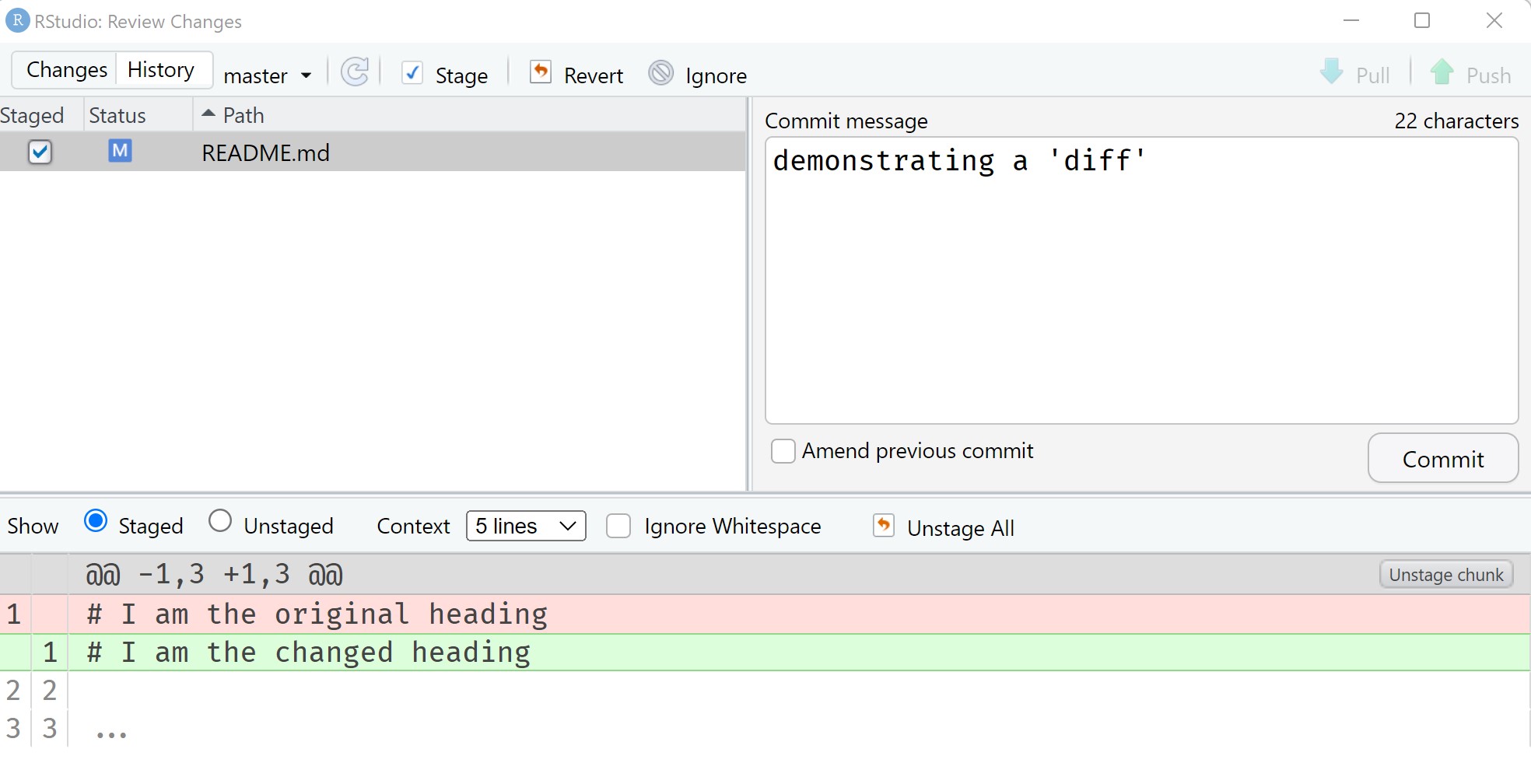

Line-based differences - the diff

• Changes in git are line-based
• Additions (green) and deletions (red) between commits are highlighted

Going back in time

• Every commit has a unique hash value
• Can checkout old commit (browse history)

git checkout [commit hash to browse]

• Can reset changes

git reset --hard [commit hash to reset to]

• Removes need for my-file_final_v2_2019.R
• Time travelling has its dangers…¹

1. Never change published history! One of the cardinal rules of Git is that, since so much work is local within your clone, you have a great deal of freedom to rewrite your history locally. However, once you push your work, it is a different story entirely, and you should consider pushed work as final unless you have good reason to change it. In short, you should avoid pushing your work until you’re happy with it and ready to share it with the rest of the world.

Branching

gitGraph
   commit
   commit
   branch feature
   checkout feature
   commit
   commit
   checkout main
   commit

• Variations of repository: branches

git branch [my new branch name]

• List current branches

git branch

• Quick switching between branches

git checkout [branch name]

Merging two branches

gitGraph
   commit
   commit
   branch feature
   checkout feature
   commit
   commit
   checkout main
   commit
   merge feature

• Consolidate diverged branches
• Usually merged automagically
• Conflicting changes can be a headache to fix
• Line edited in source/target branch - keep which?
• Resolving merge conflicts beyond today’s scope

Example of gitflow

gitGraph
   commit tag: "v0.0.1"
   commit
   branch feature-1
   checkout feature-1
   commit
   commit
   checkout main
   branch feature-2
   checkout feature-2
   commit
   checkout feature-1
   commit
   checkout main
   commit tag: "bugfix"
   merge feature-1 tag: "v0.1.0"
   checkout feature-2
   commit

• gitflow: specific workflow for git repositories
• features developed on branches, then merged into the main one

Version control and collaboration

• git itself is just a command line tool for version control
• git platforms add UI for collaboration¹
  • GitHub.com de facto standard in R, but alternatives do exist (e.g., GitLab.com)
• git + GitHub
  • VCS (git)
  • Web hosting of code (GitHub)
  • Organisation with issues, discussions (GitHub)
  • Automation of checks/test (GitHub)

1. All platforms also available on-premise for enterprise use

git platforms

GitHub.com

• Huge number of R packages developed and hosted there:
  • ggplot2
  • dplyr
  • pharmaverse
  • …
• 150 million developers and over 400 million repositories on GitHub.com as of June 2025
• See the about GitHub page
• “Social media” for developers / social coding
• Discuss problems, propose changes, publish code

Branches and pull requests

• Branches are a git concept
• Git platforms add the concept of pull request (PR)
  • PR is a suggested merge from branch A to B
  • Usually from feature A to main
• Allow to preview problems before merge and discuss changes
• Once everyone is happy, a pull request¹ can be merged
• Every PR has an associated branch, but not every branch has a PR
• More in the demo!

1. Technically, not a PR but its associated branch

Automating things with GitHub

• GitHub provides
  • Cloud compute
  • Scripting framework (GitHub actions)
• Allows task automation, e.g.
  • Run unit tests
  • Build & host documentation
  • Static code analysis (linting)
• Most important actions for R: github.com/r-lib/actions
• Actions can be extremely useful to enforce best-practices and quality

A typical GitHub workflow

sequenceDiagram
    participant A as Alessandro
    participant GH as GitHub server
    participant B as Audrey
    A->>A: make change locally & commit to <feature>
    A->>GH: push commit
    A->>GH: open pull request
    GH->>GH: run automated checks
    A->>B: request review
    B->>B: review code
    B->>A: request changes
    A->>A: implement changes locally & commit
    A->>GH: push commit
    GH->>GH: run automated checks
    A->>B: request review
    B->>B: review code
    B->>GH: approve changes, unblocking merge
    A->>GH: merge <feature> into <main>
    GH->>GH: run automated checks on <main>
    B->>GH: pull newest version of <main>

Looks awfully complicated, why?

• Efficient collaboration with novice/untrusted contributors
  • Maintainer: automated checks reduce review burden
  • Contributor: no need to check manually
• Branching promotes asynchronous work on features
• Full history of the project is preserved - you can always go back

\(\leadsto\) Making collaboration on code scalable

Demo

• Thanks to Audrey for helping me in this demo!
• How do we publish a repository on GitHub?
• How do we add a collaborator on GitHub?
• How does a pull request work?

These are the first steps for setting up the next practical.

Don’t panic if it looks confusing - we are going to help you to get this going.

Practical - collaboration on GitHub

• Work in teams of 3 or 4
• One member of the group can publish the project that we worked on in the previous practicals on their GitHub page
• The same member can then invite the other members as collaborators
• Every member can now:
  1. Review the project
  2. Create a new branch
  3. Propose some edits by opening a PR
• The purpose of this exercise is to explore the collaboration functionality of GitHub - not to produce a perfect package

License information

• Creators (initial authors): Kevin Kunzmann , Shuang Li

• In the current version, changes were done by (later authors): Daniel Sabanés Bové , Alessandro Gasparini

• This work is licensed under the Creative Commons Attribution-ShareAlike 4.0 International License.

• The source files are hosted at github.com/openstatsware/shortcourse-iscb2025, which is forked from the original version at github.com/RCONIS/workshop-r-swe-zrh.

• Important: to use this work you must provide the name of the creators (initial authors), a link to the material, a link to the license, and indicate if changes were made.
